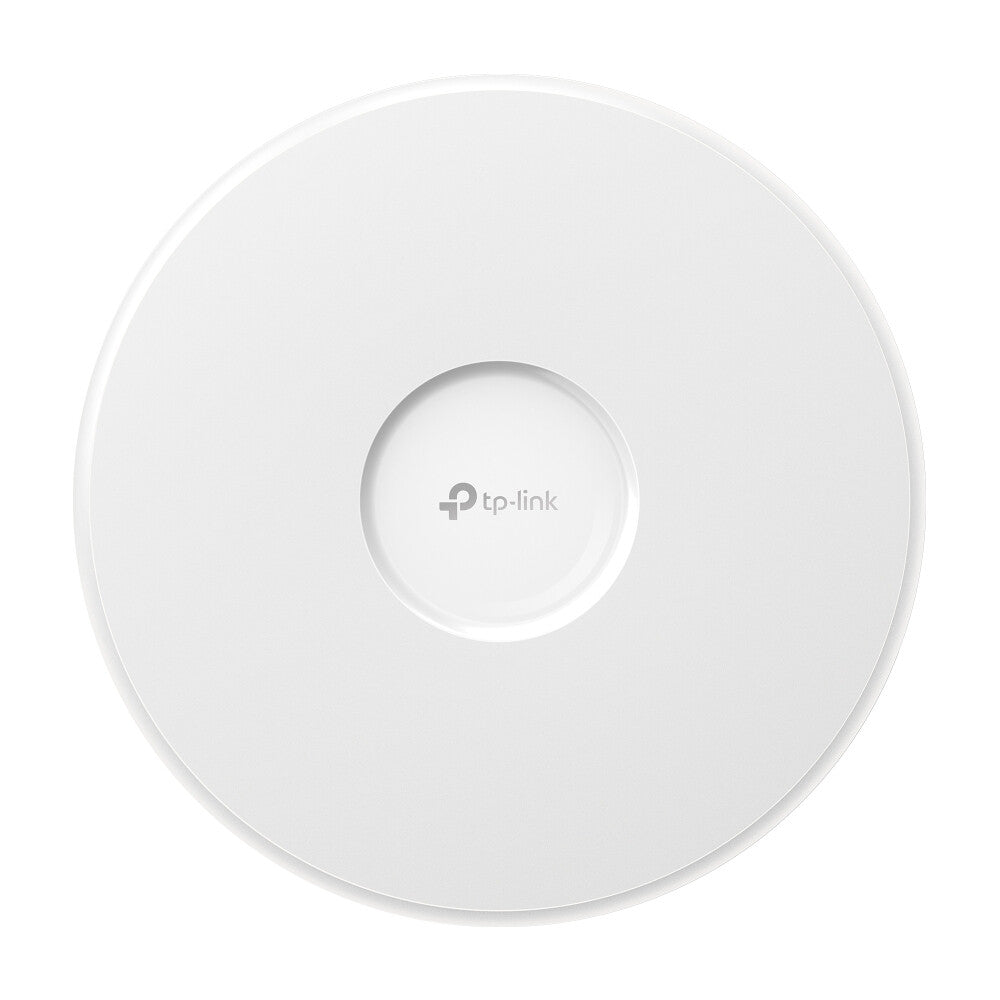

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access PointEAP772

BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz). A clear 6 GHz band brings cleaner and wider band resources. 1× 2.5G Port unlocks the full potential of Wi-Fi 7. 320 MHz bandwidth enables many more simultaneous transmissions. Multi-Link Operation and Multi-RUs ensure the high performance of your network. Advanced Functions: Centralized management, mesh, and AI roaming. Ultra-Thin Enterprise WiFi 7 Access Point. - Next-Gen WiFi 7. - Wi-Fi Speeds up to 9214 Mbps. - Multi-Link Operation (MLO). - 1× 2.5G RJ45 Port. - PoE Power. - Ultra-Thin Design. - Centralized Cloud Management. - Omada Mesh Technology. Ultra-Thin Design for Flexible Deployment. The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.. Boosted Network Security. - Secure Guest Network with up to 24 SSIDs. - Boost Your Business with SMS Login. - WPA3 for Worry-Free Open Public Networks. - Rogue AP Detection. Features. BeamForming. Yes. Quality of Service (QoS) support. Yes. Airtime Fairness (ATF). Yes. VLAN support. Yes. MIMO type. Multi User MIMO. MIMO. Yes. Bluetooth version. 5.2. Bluetooth. Yes. Number of users. 380 user(s). Networking standards. IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Ethernet LAN data rates. 2500 Mbit/s. Maximum data transfer rate (6 GHz). 5760 Mbit/s. Maximum data transfer rate (5 GHz). 2880 Mbit/s. Maximum data transfer rate (2.4 GHz). 574 Mbit/s. Maximum data transfer rate. 9300 Mbit/s. 5 GHz. Yes. 6 GHz. Yes. 2.4 GHz. Yes. Security. Access Control List (ACL). Yes. Remote Authentication Dial-In User Service (RADIUS). Yes. Number of SSID supported. 24. Service Set Identifier (SSID) features. Multiple SSIDs. MAC address filtering. Yes. Security algorithms. SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Management features. Web-based management. Yes. Ports & interfaces. Ethernet LAN (RJ-45) ports. 1. Design. LED indicators. Yes. Product colour. White. Placement. Ceiling, Wall. Antenna. Antenna type. Internal. General. Product family. Omada. Certificates. Certification. CE, FCC, RoHS, IC. Weight & dimensions. Height. 32.5 mm. Depth. 220 mm. Width. 220 mm. Packaging content. Mounting kit. Yes. AC adapter included. No. Quantity per pack. 1 pc(s). Operational conditions. Storage relative humidity (H-H). 5 - 90%. Storage temperature (T-T). -40 - 70 °C. Operating temperature (T-T). 0 - 40 °C. Operating relative humidity (H-H). 10 - 90%. leaflet. Quick Installation Guide. Regulatory Compliance
