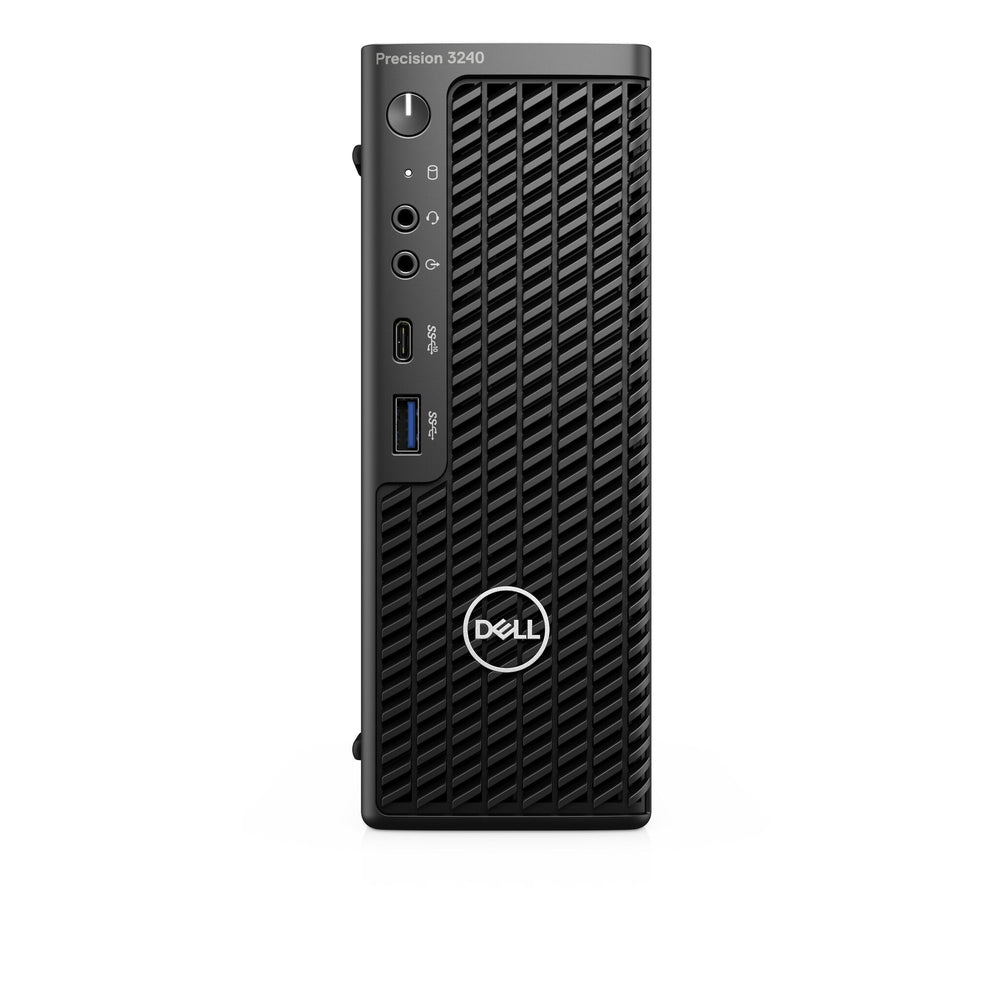

DELL Precision 3240 Intel Xeon W W-1250 32 GB DDR4-SDRAM 512 GB SSD NVIDIA® Quadro® P1000 Windows 10 Pro CFF Workstation BlackTFVPF

Windows 10 Pro 64-bit. Intel Xeon W-1250 (12MB Cache, 3.3GHz). NVIDIA Quadro P1000 (4GB). 32GB (2933MHz) DDR4-SDRAM (2 x 16) & 512GB SSD. Minimal footprint. Maximum power.. The only ultra small form factor workstation with AI-based optimization, featuring NVIDIA® graphics, the latest Intel® Xeon® processors and Dell Optimizer for Precision.. Processor. Memory bandwidth supported by processor (max). 41.6 GB/s. Memory clock speeds supported by processor. 2666 MHz. Memory types supported by processor. DDR4-SDRAM. Maximum internal memory supported by processor. 128 GB. Number of processors installed. 1. Maximum number of PCI Express lanes. 16. PCI Express configurations. 1x16, 2x8, 1x8+2x4. PCI Express slots version. 3.0. Tjunction. 100 °C. Processor codename. Comet Lake. Thermal Design Power (TDP). 80 W. Processor lithography. 14 nm. Processor operating modes. 64-bit. System bus rate. 8 GT/s. Processor cache type. Smart Cache. Processor cache. 12 MB. Processor socket. LGA 1200 (Socket H5). Processor frequency. 3.3 GHz. Processor boost frequency. 4.7 GHz. Processor threads. 12. Processor cores. 6. Processor model. W-1250. Processor family. Intel Xeon W. Processor manufacturer. Intel. Memory. Memory clock speed. 2933 MHz. Memory slots. 2x SO-DIMM. Memory layout (slots x size). 2 x 16 GB. Internal memory type. DDR4-SDRAM. Maximum internal memory. 64 GB. Internal memory. 32 GB. Storage. Card reader integrated. No. SSD form factor. M.2. SSD interface. PCI Express. SSD capacity. 512 GB. Number of SSDs installed. 1. Total SSDs capacity. 512 GB. Storage media. SSD. Optical drive type. No. Total storage capacity. 512 GB. Graphics. On-board graphics card DirectX version. 12.0. On-board graphics card OpenGL version. 4.5. On-board graphics card ID. 0x9BE6. On-board graphics card base frequency. 350 MHz. On-board graphics card dynamic frequency (max). 1200 MHz. Maximum on-board graphics card memory. 64 GB. Number of displays supported (on-board graphics). 3. On-board graphics card model. Intel UHD Graphics P630. On-board GPU manufacturer. Intel. Discrete graphics card memory. 4 GB. Discrete graphics card model. NVIDIA® Quadro® P1000. On-board graphics card. Yes. Discrete graphics card. Yes. Network. Wi-Fi. No. Cabling technology. 10/100/1000Base-T(X). Ethernet LAN data rates. 10,100,1000 Mbit/s. Ethernet LAN. Yes. Ports & interfaces. DC-in jack. Yes. Combo headphone/mic port. Yes. Line-out. Yes. Headphone outputs. 1. Microphone in. No. Ethernet LAN (RJ-45) ports. 1. DisplayPort version. 1.4. DisplayPorts quantity. 2. DVI port. No. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 3. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. Design. Product colour. Black. Cable lock slot type. Kensington. Cable lock slot. Yes. Placement supported. Horizontal/Vertical. Chassis type. CFF. Performance. Trusted Platform Module (TPM). Yes. Password protection. Yes. Audio system. High Definition Audio. Audio chip. Realtek ALC3246. Motherboard chipset. Intel W480. Market positioning. Business. Product type. Workstation. Software. Trial software. Microsoft Office. Operating system language. Multilingual. Operating system architecture. 64-bit. Operating system installed. Windows 10 Pro. Processor special features. Intel® Identity Protection Technology (Intel® IPT). Yes. Intel® Quick Sync Video Technology. Yes. Intel® Hyper Threading Technology (Intel® HT Technology). Yes. Intel® Turbo Boost Technology. 2.0. Intel Clear Video Technology. Yes. Intel® InTru™ 3D Technology. Yes. Intel® Clear Video HD Technology (Intel® CVT HD). Yes. Intel 64. Yes. Thermal Monitoring Technologies. Yes. Enhanced Intel SpeedStep Technology. Yes. Intel® AES New Instructions (Intel® AES-NI). Yes. Embedded options available. No. Intel® Secure Key. Yes. Intel VT-x with Extended Page Tables (EPT). Yes. Intel® OS Guard. Yes. Idle States. Yes. Processor package size. 37.5 x 37.5 mm. Intel Trusted Execution Technology. Yes. Supported instruction sets. SSE4.1, SSE4.2, AVX 2.0. Execute Disable Bit. Yes. Scalability. 1S. CPU configuration (max). 1. Intel Virtualization Technology for Directed I/O (VT-d). Yes. Processor ARK ID. 199274. Intel Virtualization Technology (VT-x). Yes. Intel Software Guard Extensions (Intel SGX). Yes. Power. Power supply input frequency. 50 - 60 Hz. Power supply input voltage. 100 - 240 V. Power supply. 240 W. Operational conditions. Non-operating shock. 160 G. Operating shock. 110 G. Non-operating vibration. 1.3 G. Operating vibration. 0.66 G. Non-operating altitude. -15.2 - 10668 m. Operating altitude. -15.2 - 3048 m. Storage relative humidity (H-H). 0 - 95%. Operating relative humidity (H-H). 10 - 90%. Storage temperature (T-T). -40 - 65 °C. Operating temperature (T-T). 0 - 35 °C. Sustainability. Sustainability certificates. ENERGY STAR. Weight & dimensions. Package weight. 4.09 kg. Package height. 174.5 mm. Package depth. 247 mm. Package width. 594 mm. Weight. 1.71 kg. Height. 188.1 mm. Depth. 178.7 mm. Width. 70.2 mm. Packaging content. Input device model. KB216,MS116. Keyboard included on selected markets only. Yes. Mouse included on selected markets only. Yes. Display included. No. General. Product family. Precision. Product series. 3000. Logistics data. Harmonized System (HS) code. 84715000. leaflet. manual pdf. Dell Precision 3240 Compact Connecting External Displays. Dell Precision 3240 Compact Statement of Volatility. Precision 3240 Compact Accessories Installation Guide
