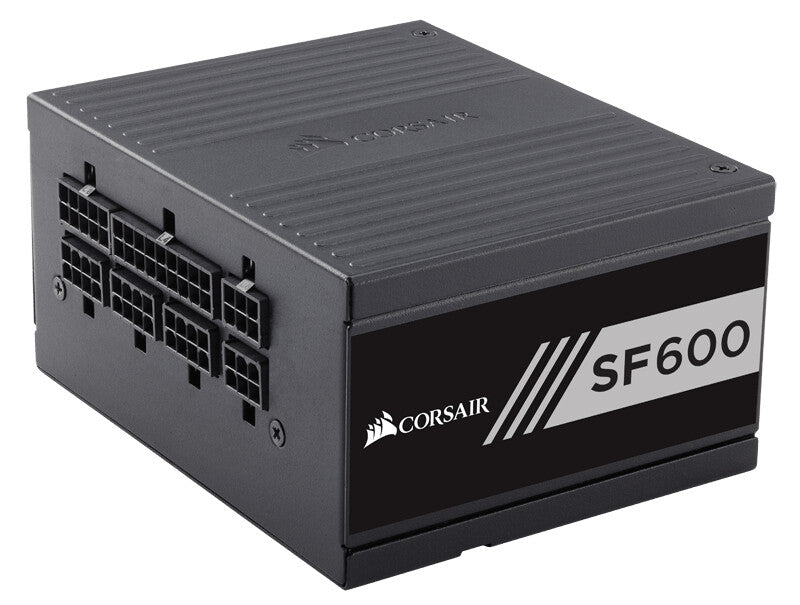

Corsair SF600 power supply unit 600 W 24-pin ATX SFX BlackCP-9020105-UK

600 W 100 - 240 V 47 - 63 Hz. Motherboard power connector: 24-pin ATX. PC SFX 80 PLUS Gold. Active. Black. The small form factor power supply for your big ideas.. SF Series power supplies bring legendary Corsair performance and reliability to the SFX small form factor standard. They have the features found in full-size high performance power supplies, with certification for 80 PLUS Gold efficiency, superior voltage regulation, Zero RPM mode for virtually silent operation, and 105°C All Japanese capacitors for better reliability.. 80 PLUS Gold certified. If you’re building a small system that’s going to see a lot of use, low heat generation and high efficiency are essential. SF Series power supplies operate at greater than 90% efficiency at 50% load on 115V circuits.. SFX Form Factor. SF Series is designed to the SFX power supply specification for high performance small form factor systems.. Fully modular cable set. The detachable DC cables make builds and upgrades easy, with clean, great-looking results. Use only the power cables you need lets you save valuable internal space and can improve system airflow.. 100% All Japanese 105°C capacitors. Premium internal components ensure solid power delivery and long term reliability.. Zero RPM Fan Mode. Building a silent PC? SF Series power supplies are so efficient that the fan doesn’t need to spin at low to medium loads.. Power. Power protection features. Over power, Over voltage, Overheating, Short circuit, Under voltage. Max output current (+5Vsb). 2.5 A. Max output current (-12V). 0.3 A. Max output current (+5V). 20 A. Max output current (+12V). 50 A. Max output current (+3.3V). 20 A. Combined power (+5Vsb). 12.5 W. Combined power (-12V). 3.6 W. Combined power (+5V). 120 W. Combined power (+12V). 600 W. Combined power (+3.3V). 120 W. AC input frequency. 47 - 63 Hz. AC input voltage. 100 - 240 V. Total power. 600 W. Ports & interfaces. Cabling type. Fully-Modular. CPU power connector (4+4 pin). Yes. PCI Express power connectors (6+2 pin). 2. EPS power connector (8-pin). Yes. Peripheral (Molex) power connectors (4-pin). 1. Number of SATA power connectors. 4. Motherboard power connector. 24-pin ATX. Performance. Mean time between failures (MTBF). 100000 h. EPS version. 2.92. ATX version. 2.4. 80 PLUS certification. 80 PLUS Gold. Power supply unit (PSU) form factor. SFX. Purpose. PC. Design. On/off switch. Yes. Fan location. Top. Number of fans. 1 fan(s). Cooling type. Active. Product colour. Black. Operational conditions. Operating temperature (T-T). 0 - 40 °C. Certificates. Certification. FCC, ICES, CE, UL, CUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, RoHS (China), KC. Compliance certificates. RoHS. Weight & dimensions. Weight. 860 g. Height. 63 mm. Depth. 125 mm. Width. 100 mm. Packaging data. Manual. Yes
