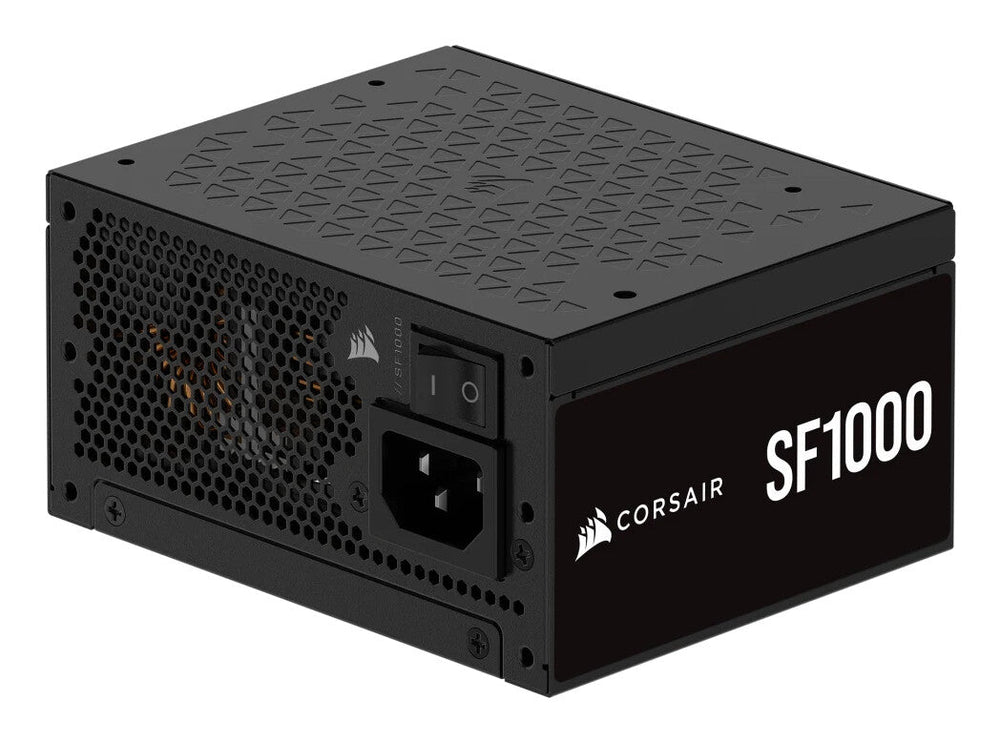

Corsair SF1000 power supply unit 1000 W 24-pin ATX ATX BlackCP-9020257-UK

80 PLUS Platinum rated efficiency. ATX 3.1 compliant, supporting PCIe 5.1. Fully modular, Type-5 Micro-Fit PSU connectors. 92mm PWM cooling fan with Zero RPM mode. Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.. Power. Power protection features. Overheating, Over current, Over power, Over voltage, Short circuit. Max output current (+5Vsb). 3 A. Max output current (+5V). 20 A. Max output current (+12V). 83.3 A. Max output current (+3.3V). 20 A. Combined power (+5Vsb). 15 W. Combined power (+5V). 130 W. Combined power (+12V). 1000 W. Combined power (+3.3V). 130 W. Input current. 6 - 12 A. AC input frequency. 47 - 63 Hz. AC input voltage. 100 - 240 V. Total power. 1000 W. Ports & interfaces. Cabling type. Fully-Modular. ATX power connector (12+4 pin). Yes. PCI Express power connectors (6+2 pin). 4. EPS power connector (4+4 pin). Yes. Number of PATA power connectors. 1. Number of SATA power connectors. 3. Motherboard power connector. 24-pin ATX. Performance. Mean time between failures (MTBF). 100000 h. Bearing technology. FDB. Silent mode. Yes. ATX version. 3.1. 80 PLUS certification. 80 PLUS Platinum. Power supply unit (PSU) form factor. ATX. Purpose. PC. Design. On/off switch. Yes. Fan location. Top. Number of fans. 1 fan(s). Fan diameter. 9.2 cm. Cooling type. Active. Product colour. Black. Packaging content. Cables included. AC. Weight & dimensions. Weight. 2.3 kg. Height. 63.5 mm. Depth. 100 mm. Width. 125 mm
