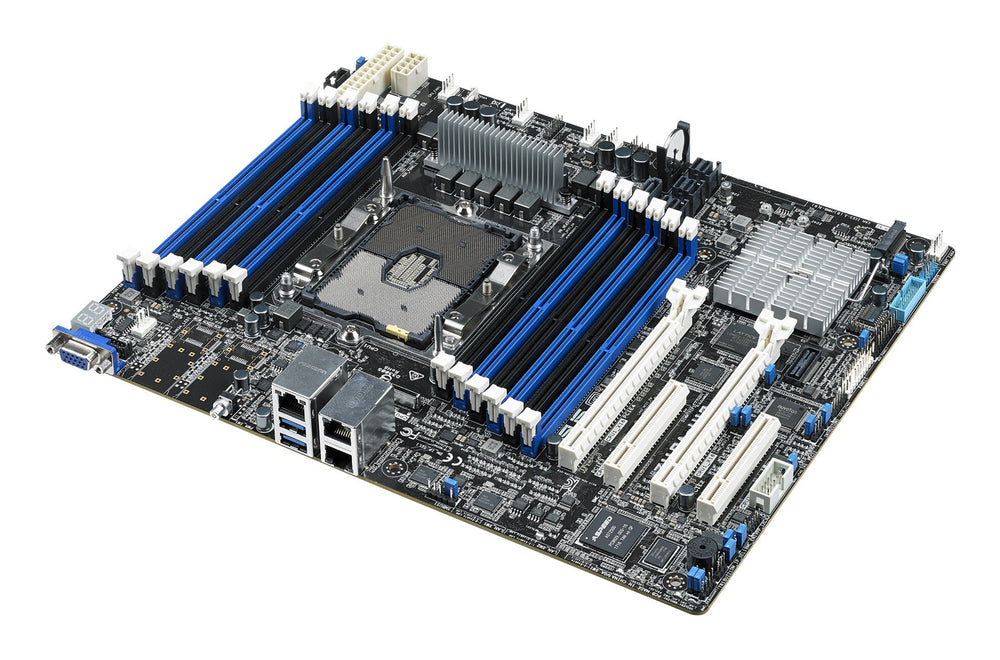

ASUS Z11PA-U12 Intel® C621 LGA 3647 (Socket P) ATX90SB0660-M0UAY1

Intel LGA 3647 (Socket P) Intel® Xeon®. Server ATX Intel® C621. DDR4-SDRAM Maximum internal memory: 1.54 TB. Serial Attached SCSI (SAS) RAID support. Scalable server motherboard with 12 DIMM slots. - Intel® Xeon® Scalable processor platform. - Unmatched memory expandability with 12 DIMM slots. - High-speed networking with dual 10 Gigabit SFP+. - Dual OCuLink for efficient connections to NVMe devices. - Support for up to 13 6Gb/s SATA storage devices. - Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC). - Increased energy efficiency with ASUS ProCool Power Connectors. Unmatched memory expandability with 12 DIMM slots. ASUS Z11PA-U12 features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12 makes an ideal platform for deep learning application development and education.. Dual OCuLink for efficient connections to NVMe devices. ASUS Z11PA-U12 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.. Connect up to 13 6Gb/s SATA storage devices. ASUS Z11PA-U12 comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.. Comprehensive IT infrastructure management solution. The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface , video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC. Increased energy efficiency with ASUS ProCool Power Connectors. Increased energy efficiency with ASUS ProCool Power Connectors. Hybrid M.2 connector x 1 interface. Form factor: 2242, 2260, 2280. Support both PCIE and SATA. Processor. Supported QPI. 10.4 GT/s. Compatible processor series. Intel® Xeon®. Processor socket. LGA 3647 (Socket P). Processor manufacturer. Intel. Memory. Maximum RDIMM memory. 384 GB. Maximum internal memory. 1.54 TB. Supported memory clock speeds. 2400,2666 MHz. Memory channels. Hexa-channel. Supported memory types. DDR4-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Supported storage drive interfaces. Serial Attached SCSI (SAS). Graphics. On-board graphics card model. Aspeed AST2500. On-board graphics card memory. 64 MB. Discrete graphics support. Yes. Parallel processing technology support. Not supported. Internal I/O. Serial port headers. 1. TPM connector. Yes. Integrated SAS ports. 2. EPS power connector (8-pin). Yes. Power fan connector. Yes. ATX Power connector (24-pin). Yes. Number of SATA III connectors. 13. Rear panel I/O ports. VGA (D-Sub) ports quantity. 1. Ethernet LAN (RJ-45) ports. 3. Network. Wi-Fi. No. LAN controller. Intel® I210-AT. Ethernet LAN. Yes. Features. Motherboard chipset. Intel® C621. Motherboard form factor. ATX. Component for. Server. Expansion slots. PCI Express x16 (Gen 3.x) slots. 2. PCI Express x8 (Gen 3.x) slots. 2. Operational conditions. Storage relative humidity (H-H). 20 - 90%. Operating temperature (T-T). 10 - 35 °C. Storage temperature (T-T). -40 - 70 °C. Packaging data. Package weight. 1.62 kg. Logistics data. Harmonized System (HS) code. 84733020. Weight & dimensions. Depth. 244 mm. Width. 305 mm. Other features. Number of DIMM slots. 12. Number of processors supported. 1. Weight. 970 g. Supported RDIMM module capacity. 4GB, 8GB, 16GB, 32GB. Supported RDIMM clock speeds. 2400,2666 MHz. Supported LRDIMM clock speeds. 2400,2666 MHz. Supported LRDIMM module capacity. 32GB, 64GB. Maximum UDIMM memory. 768 GB. Supported DIMM module capacities. 4GB, 8GB, 16GB, 32GB, 64GB. manual pdf
