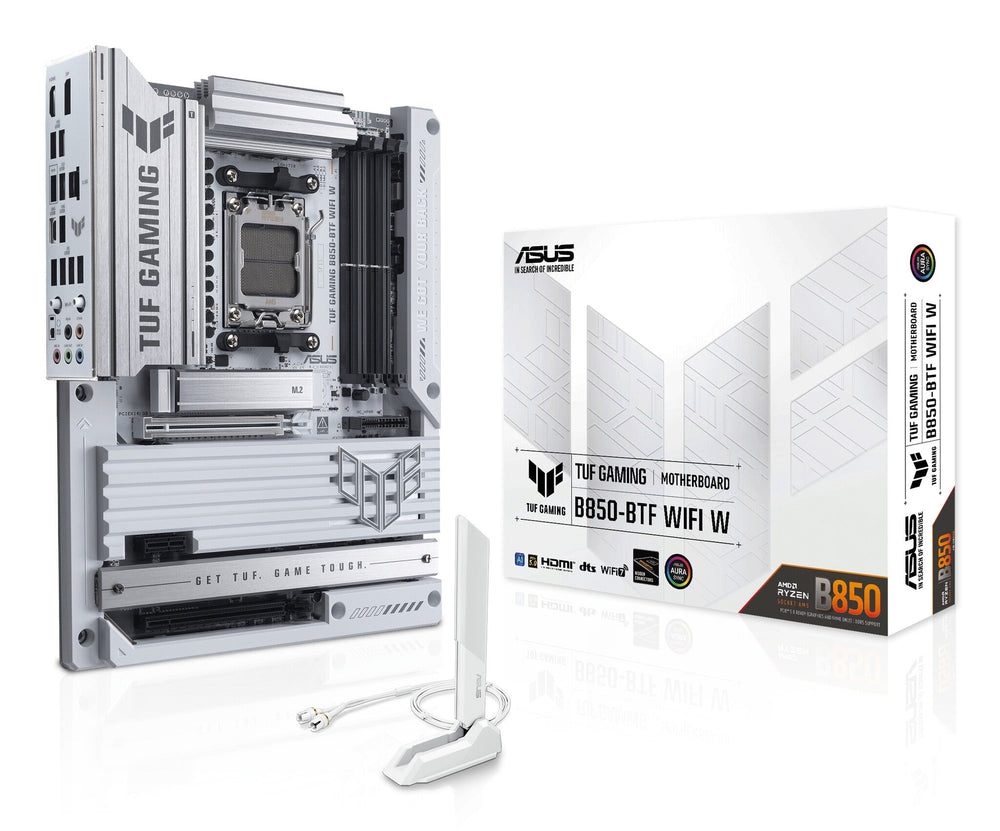

ASUS TUF GAMING B850-BTF WIFI W AMD B850 Socket AM5 ATX90MB1KW0-M0EAY0

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. PC ATX AMD B850 Realtek ALC1220P 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7. BIOS type: UEFI AMI 256 Mbit. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4. TUF GAMING B850-BTF WIFI W. TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.. Processor. Compatible processor series. AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Processor socket. Socket AM5. Processor manufacturer. AMD. Memory. Unbuffered memory. Yes. Maximum internal memory. 256 GB. Supported memory clock speed (max). 8000 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 7. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. On-board graphics card. No. Parallel processing technology support. Not supported. Internal I/O. Number of RGB LED pin headers. 3. RGB LED pin header. Yes. Number of water pump connectors. 1. Number of COM connectors. 1. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 4. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel connector. Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. WiFi-AP antenna jack. 2. Microphone in. Yes. Line-in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 3. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 2. Network. Bluetooth version. 5.4. Bluetooth. Yes. Wi-Fi standards. Wi-Fi 7 (802.11be). Top Wi-Fi standard. Wi-Fi 7 (802.11be). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 11. Cooling type. Passive. Product colour. White. Audio output channels. 7.1 channels. Audio chip. Realtek ALC1220P. Motherboard chipset. AMD B850. Motherboard chipset family. AMD. Motherboard form factor. ATX. Component for. PC. Expansion slots. 1st M.2 highest PCI Express generation. 4.0. 1st M.2 largest key size. 22110. Number of M.2 (M) slots. 3. PCI Express x16 (Gen 4.x) slots. 1. PCI Express x1 (Gen 4.x) slots. 1. BIOS. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 2.04 kg. Package height. 68 mm. Package depth. 273 mm. Package width. 353 mm. Weight & dimensions. Height. 57 mm. Depth. 244 mm. Width. 305 mm. Packaging content. Antenna included. Yes. Other features. Weight. 1.44 kg. manual pdf
