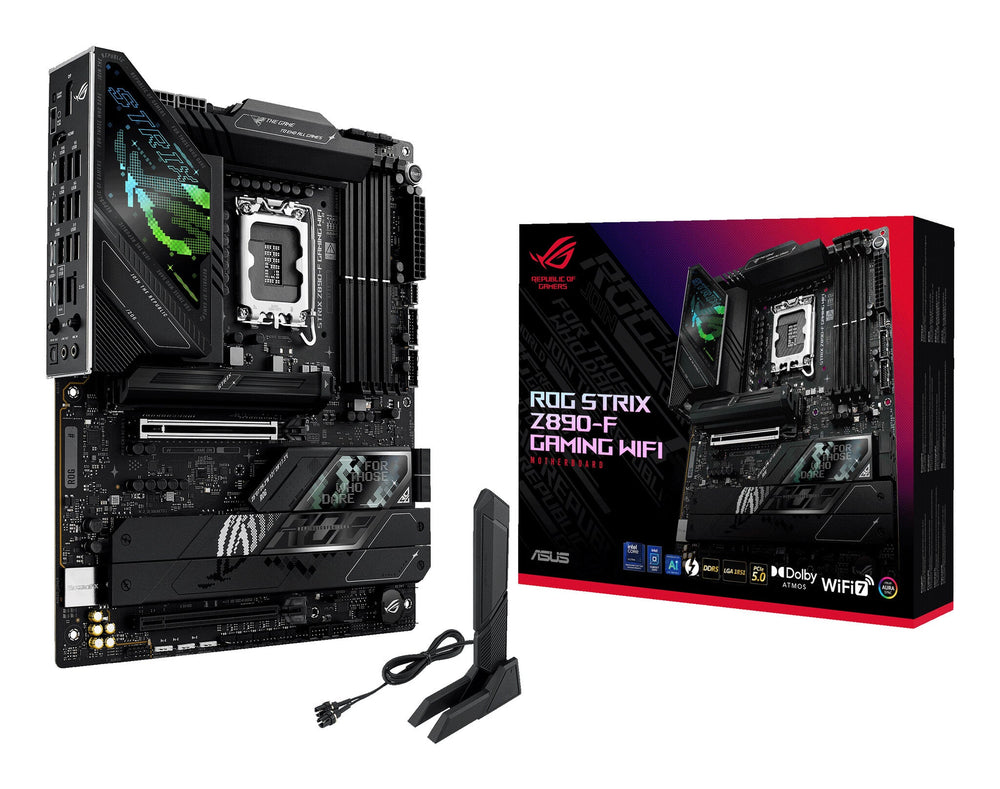

ASUS ROG STRIX Z890-F GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX - 90MB1I40-M0EAY0

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2). PC ATX Intel Z890 Realtek ALC4080 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9. BIOS type: UEFI AMI 256 Mbit Clear CMOS button. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4. ROG STRIX Z890-F gaming wifi. With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.. Processor. Compatible processor series. Intel Core Ultra (Series 2). Processor socket. LGA 1851 (Socket V1). Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 192 GB. Supported memory clock speed (max). 8600 MHz. ECC сompatibility. Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5. RAID support. Yes. Number of storage drives supported. 9. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. On-board graphics card. No. Parallel processing technology support. Not supported. Internal I/O. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 5. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2x2 connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. USB 2.0 connectors. 2. Rear panel I/O ports. Thunderbolt ports quantity. 2. S/PDIF out port. Yes. Microphone in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 2. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 4. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 2. Network. Bluetooth version. 5.4. Bluetooth. Yes. Top Wi-Fi standard. Wi-Fi 7 (802.11be). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 11. Product colour. Black. Audio output channels. 7.1 channels. Audio chip. Realtek ALC4080. Motherboard chipset. Intel Z890. Motherboard chipset family. Intel. Motherboard form factor. ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 5. PCI Express x16 (Gen 5.x) slots. 1. PCI Express x16 (Gen 4.x) slots. 1. BIOS. Clear CMOS button. Yes. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 1.98 kg. Package height. 68 mm. Package depth. 273 mm. Package width. 353 mm. Weight & dimensions. Depth. 244 mm. Width. 305 mm. manual pdf
