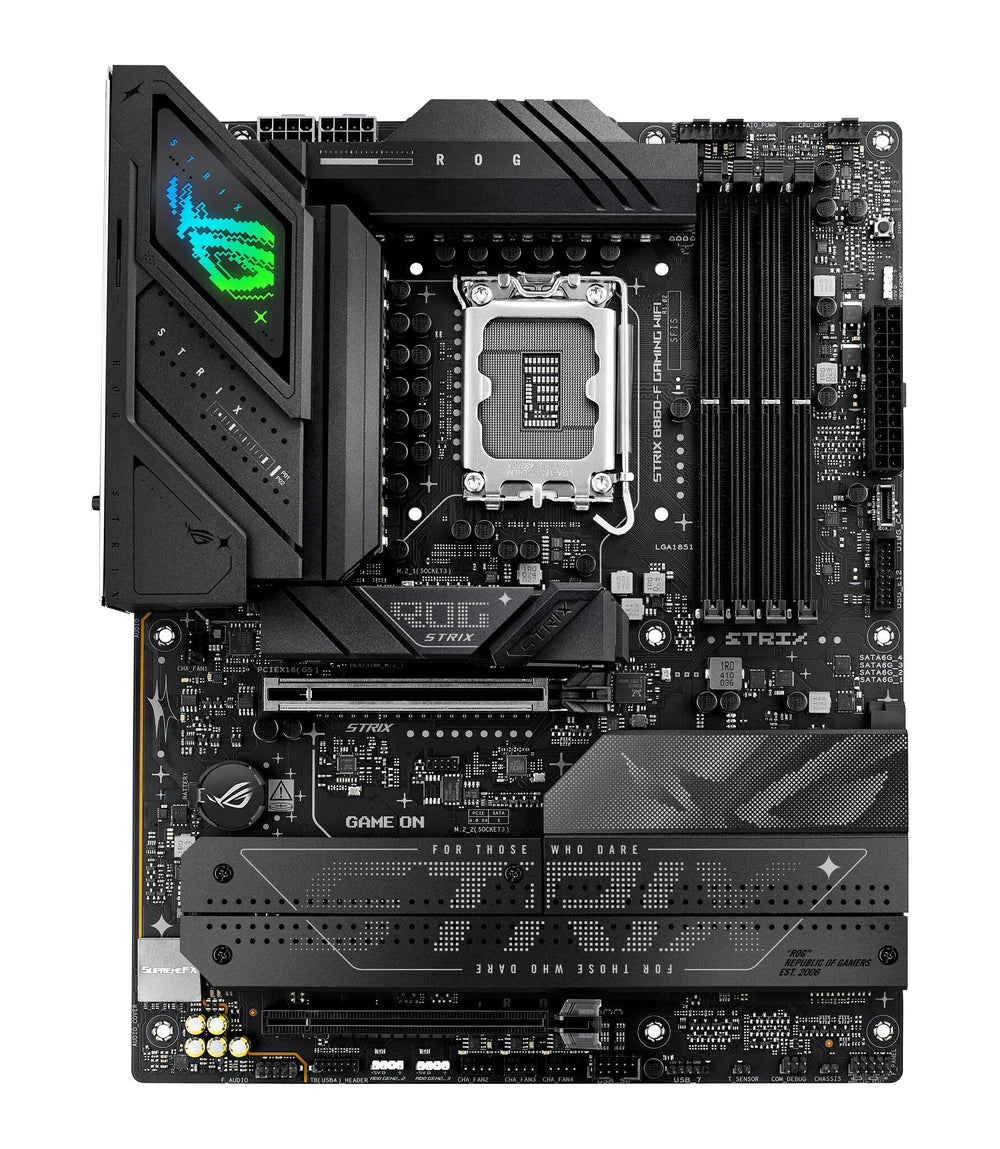

ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX - 90MB1JG0-M0EAY0

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2). PC ATX Intel B860 Realtek ALC4080 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8. BIOS type: UEFI AMI 256 Mbit Clear CMOS button. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4. ROG STRIX B860-F gaming wifi. With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.. Processor. Compatible processor series. Intel Core Ultra (Series 2). Processor socket. LGA 1851 (Socket V1). Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 256 GB. Supported memory clock speed (max). 9066 MHz. ECC сompatibility. Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 8. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 4. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. Thunderbolt ports quantity. 1. S/PDIF out port. Yes. Microphone in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 6. Network. Bluetooth version. 5.4. Bluetooth. Yes. Top Wi-Fi standard. Wi-Fi 7 (802.11be). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 11. Product colour. Multicolour. Audio output channels. 7.1 channels. Audio chip. Realtek ALC4080. Motherboard chipset. Intel B860. Motherboard chipset family. Intel. Motherboard form factor. ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 4. PCI Express x16 (Gen 4.x) slots. 1. BIOS. Clear CMOS button. Yes. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 2.29 kg. Package height. 71 mm. Package depth. 265 mm. Package width. 350 mm. Weight & dimensions. Height. 50 mm. Depth. 244 mm. Width. 305 mm. Other features. Weight. 1.51 kg
