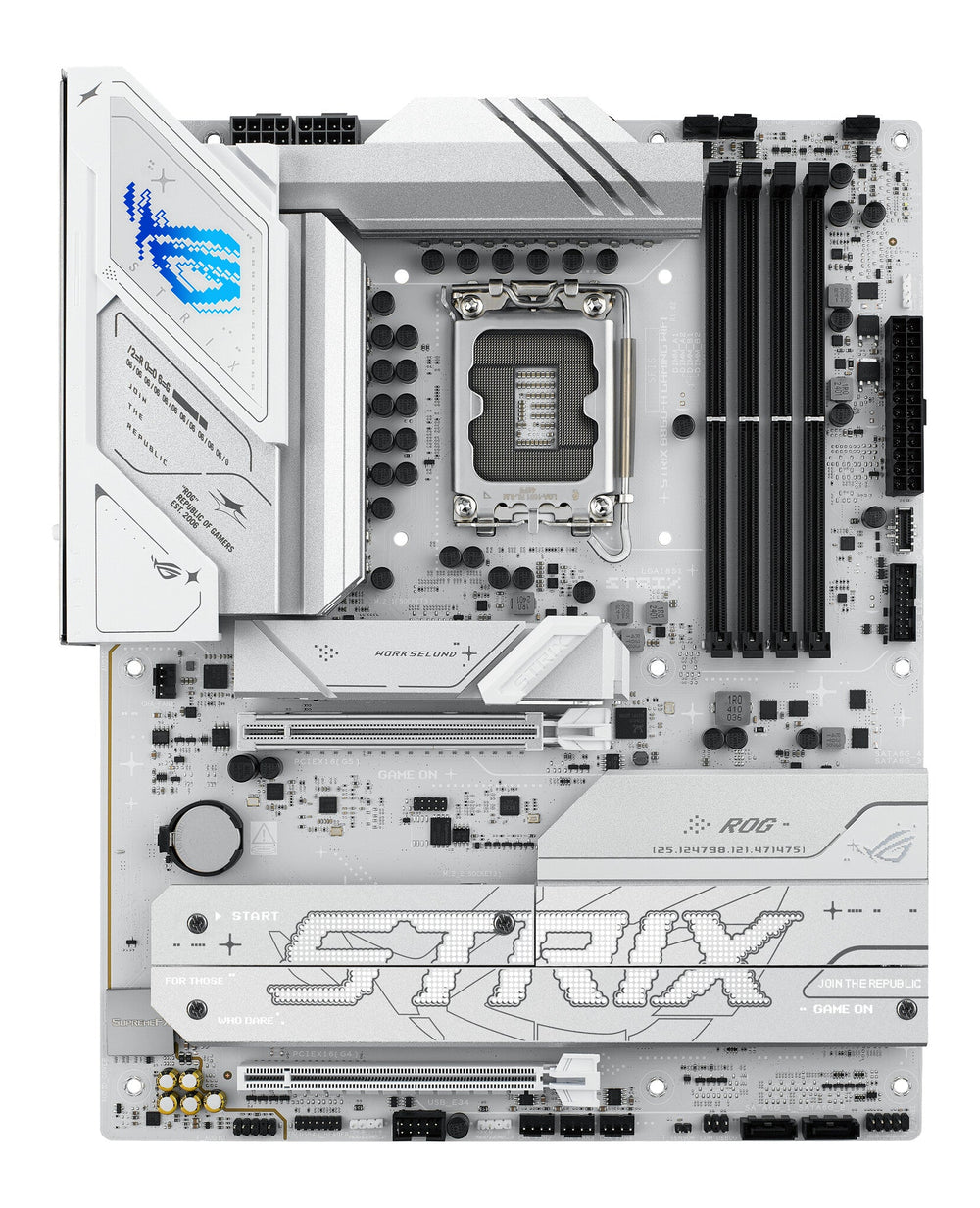

ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX - 90MB1JI0-M0EAY0

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2). PC ATX Intel B860 Realtek ALC1220P 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8. BIOS type: UEFI AMI 256 Mbit Clear CMOS button. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4. ROG STRIX B860-A gaming wifi. With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.. Processor. Compatible processor series. Intel Core Ultra (Series 2). Processor socket. LGA 1851 (Socket V1). Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 256 GB. Supported memory clock speed (max). 8600 MHz. ECC сompatibility. Non-ECC. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 8. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Number of chassis fan connectors. 4. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 1. Rear panel I/O ports. S/PDIF out port. Yes. Microphone in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB4 Gen 2x2 ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. USB 2.0 ports quantity. 4. Network. Bluetooth version. 5.4. Bluetooth. Yes. Top Wi-Fi standard. Wi-Fi 7 (802.11be). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 11. Product colour. White. Audio output channels. 7.1 channels. Audio chip. Realtek ALC1220P. Motherboard chipset. Intel B860. Motherboard chipset family. Intel. Motherboard form factor. ATX. Component for. PC. Expansion slots. PCI Express x16 (Gen 4.x) slots. 1. BIOS. Clear CMOS button. Yes. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 1.68 kg. Package height. 70 mm. Package depth. 273 mm. Package width. 355 mm. Weight & dimensions. Height. 50 mm. Depth. 244 mm. Width. 305 mm. Other features. Weight. 1.4 kg
