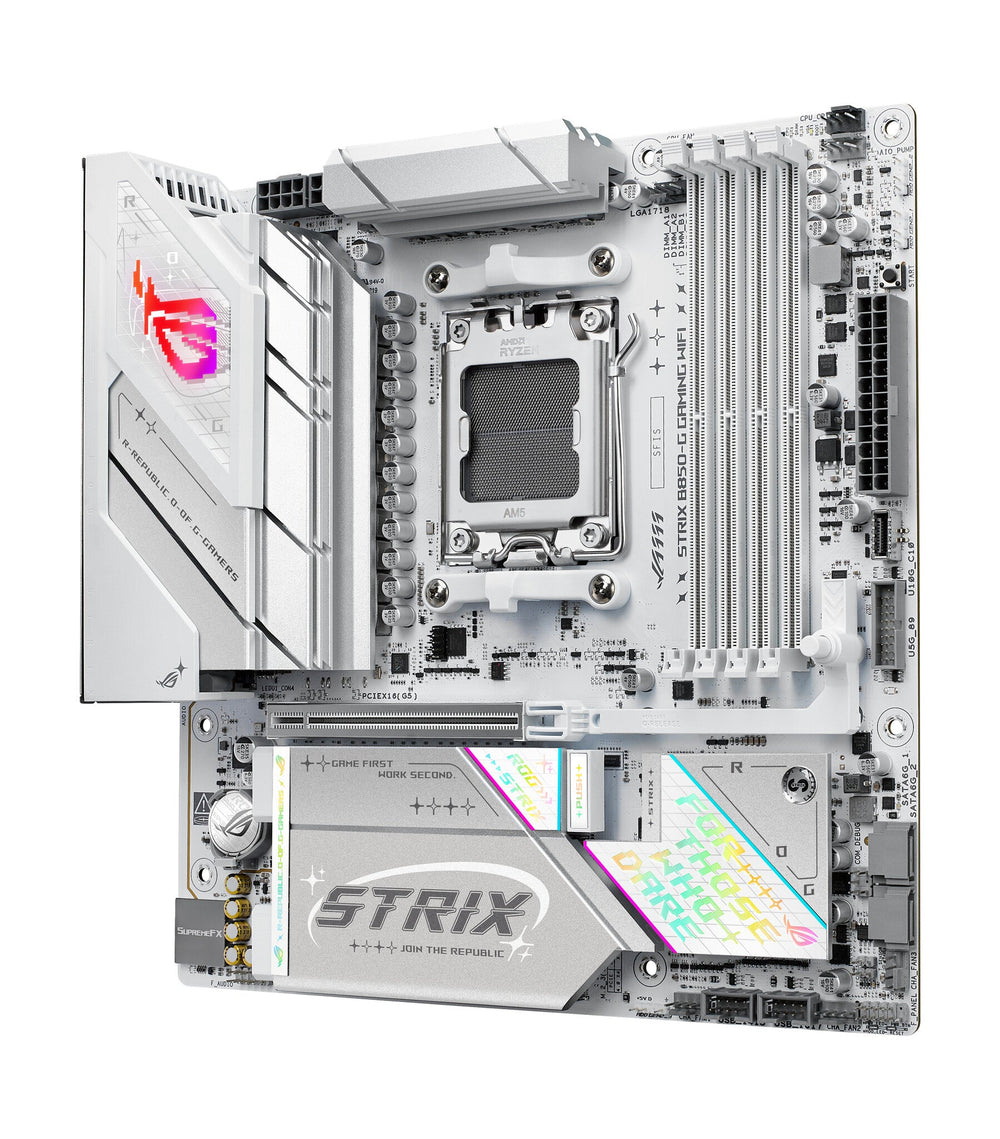

ASUS ROG STRIX B850-G GAMING WIFI AMD B850 Socket AM5 micro ATX90MB1M30-M0EAY0

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. PC micro ATX AMD B850 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6. BIOS type: UEFI AMI 256 Mbit Clear CMOS button. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4. ASUS ROG Strix B850-G Gaming WiFi AMD mATX motherboard, 14+2+1 power stages, DDR5 slots, four M.2 slots, PCIe® 5.0, WiFi 7, USB 20Gbps Type-C® and Aura Sync RGB. Processor. Compatible processor series. AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Processor socket. Socket AM5. Processor manufacturer. AMD. Memory. Unbuffered memory. Yes. Maximum internal memory. 256 GB. Supported memory clock speed (max). 8000 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 6. Number of HDDs supported. 2. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. 12V power connector. Yes. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 3. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel connector. Yes. Front panel audio connector. Yes. Number of SATA III connectors. 2. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. WiFi-AP antenna jack. 2. S/PDIF out port. Yes. Microphone in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 2. Network. Bluetooth version. 5.4. Bluetooth. Yes. Wi-Fi standards. Wi-Fi 7 (802.11be). Top Wi-Fi standard. Wi-Fi 7 (802.11be). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 11. Product colour. White. Audio output channels. 7.1 channels. Motherboard chipset. AMD B850. Motherboard chipset family. AMD. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 4. PCI Express x16 (Gen 5.x) slots. 1. BIOS. Clear CMOS button. Yes. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package height. 72.5 mm. Package depth. 277 mm. Package width. 285 mm. Weight & dimensions. Depth. 244 mm. Width. 244 mm. Packaging content. Antenna included. Yes. manual pdf
