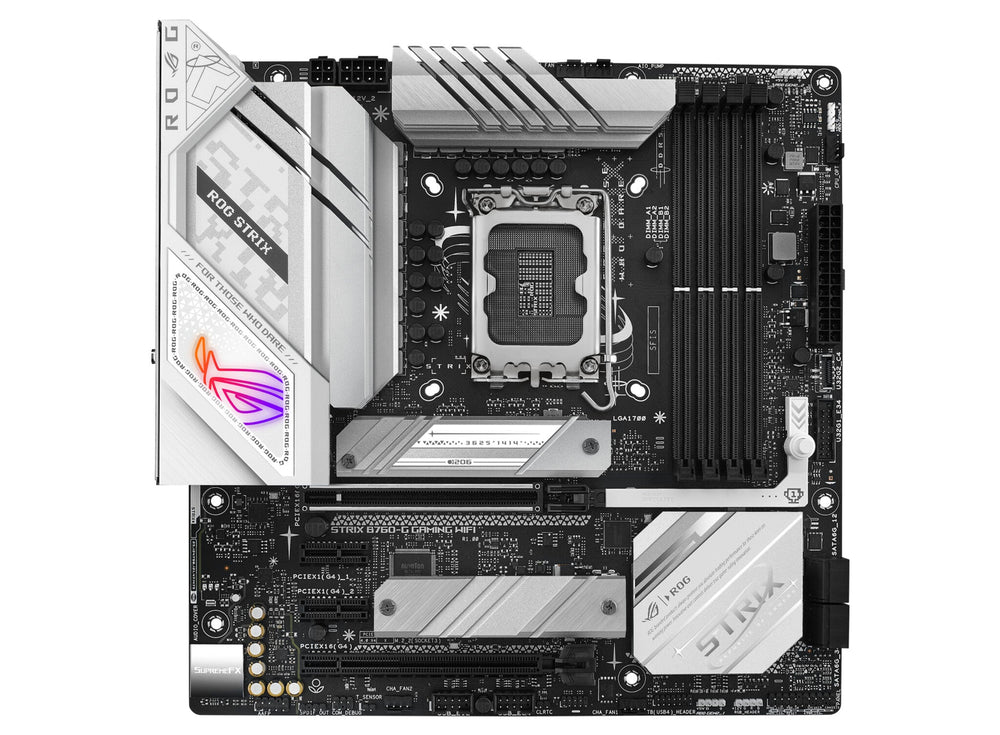

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX - 90MB1EQ0-M1EAY0

Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. PC micro ATX Intel B760 SupremeFX S1220A 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6. BIOS type: UEFI AMI 256 Mbit. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3. ROG STRIX B760-G GAMING WIFI. Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.. PCIE® SLOT Q-RELEASE. A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.. ALL-ROUND PERFORMANCE. A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.. TEAMED POWER ARCHITECTURE. 12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.. ALLOY CHOKES AND DURABLE CAPACITORS. High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.. 8+4 PIN PROCOOL POWER CONNECTORS. Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.. SIX-LAYER PCB. A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.. LEADING CONNECTIVITY. The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.. PLAY IN STYLE. The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.. Processor. Supported processor sockets. LGA 1700. Compatible processor series. Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Processor socket. LGA 1700. Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 192 GB. Supported memory clock speed (max). 7800 MHz. Supported memory clock speeds. 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz. ECC сompatibility. Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 6. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. RGB LED pin header. Yes. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Peripheral (Molex) power connectors (4-pin). 1. Number of chassis fan connectors. 2. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. WiFi-AP antenna jack. 1. Microphone in. Yes. Headphone outputs. 1. Line-in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. USB 2.0 ports quantity. 4. Network. Bluetooth version. 5.3. Bluetooth. Yes. Wi-Fi standards. Wi-Fi 6E (802.11ax). Top Wi-Fi standard. Wi-Fi 6E (802.11ax). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Audio output channels. 7.1 channels. Audio chip. SupremeFX S1220A. Motherboard chipset. Intel B760. Motherboard chipset family. Intel. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 2. PCI Express x16 (Gen 5.x) slots. 1. PCI Express x16 (Gen 4.x) slots. 1. PCI Express x1 (Gen 4.x) slots. 2. BIOS. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Weight & dimensions. Depth. 244 mm. Width. 244 mm. Packaging content. Cables included. SATA. manual pdf
