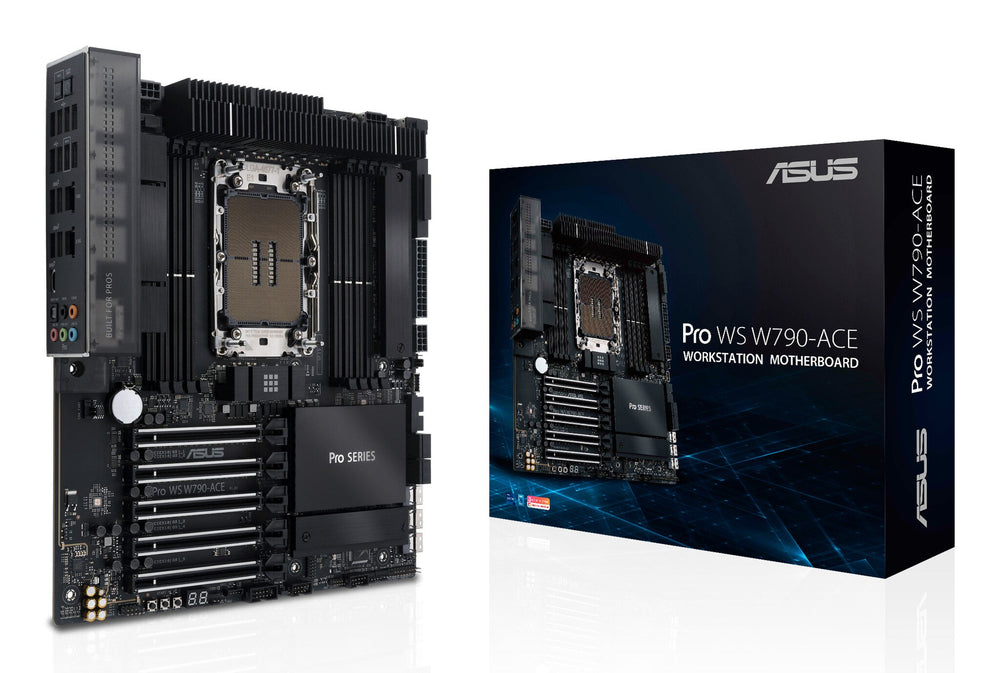

ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB - PRO WS W790-ACE

Intel LGA 4677 (Socket E) Intel Xeon W. Workstation SSI CEB Intel W790 Realtek S1220A 7.1 channels. DDR5-SDRAM 8 DIMM Maximum internal memory: 2.05 TB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6. BIOS type: UEFI AMI 512 Mbit Clear CMOS button. 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Processor. Intel Xeon series. W-3400, W-2400. Compatible processor series. Intel Xeon W. Processor socket. LGA 4677 (Socket E). Processor manufacturer. Intel. Memory. Maximum internal memory. 2.05 TB. Supported memory clock speeds. 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz. ECC сompatibility. ECC. Memory channels. Quad-channel. Memory slots type. DIMM. Number of memory slots. 8. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 6. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. On-board graphics card. No. Internal I/O. Number of COM connectors. 1. TPM connector. Yes. 12V power connector. Yes. EPS power connector (8-pin). Yes. Number of chassis fan connectors. 5. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. S/PDIF out port. Yes. Microphone in. Yes. Headphone outputs. 1. Ethernet LAN (RJ-45) ports. 2. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 4. USB 2.0 ports quantity. 8. Network. Wi-Fi. No. Ethernet interface type. 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Product colour. Black. Audio output channels. 7.1 channels. Audio chip. Realtek S1220A. Motherboard chipset. Intel W790. Motherboard chipset family. Intel. Motherboard form factor. SSI CEB. Component for. Workstation. Expansion slots. Number of M.2 (M) slots. 2. PCI Express x16 (Gen 5.x) slots. 5. BIOS. Clear CMOS button. Yes. BIOS memory size. 512 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 3.52 kg. Package height. 108 mm. Package depth. 312 mm. Package width. 370 mm. Weight & dimensions. Height. 50 mm. Depth. 277 mm. Width. 305 mm. Other features. Weight. 1.81 kg. manual pdf. manual pdf
