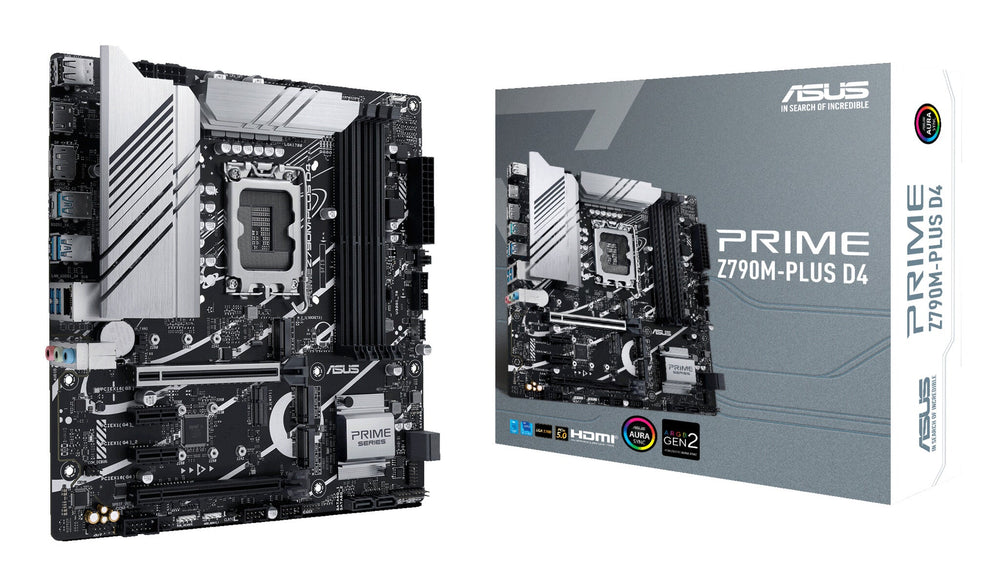

ASUS PRIME Z790M-PLUS D4 Intel Z790 LGA 1700 micro ATX90MB1D20-M0EAY0

Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors. Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery. Next-gen connectivity: PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support. ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II. PRIME Z790M-PLUS D4. ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.. FLEXIBILITY. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.. Intelligent Control. ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.. All-Around Energy Efficiency. The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.. COOLING. PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.. VRM Heatsinks and Thermal Pads. The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.. Cooler by Design. PRIME Z790M-PLUS D4 features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.. Multiple Temperature Sources. Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.. PERFORMANCE. The PRIME Z790M-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.. Robust Power Design. Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790M-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.. ProCool Connectors. Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.. Outstanding Audio. Combined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.. Audio Shielding. Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.. Dedicated Audio PCB Layers. Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.. Premium Audio Capacitors. Provides warm, natural, and immersive sound with exceptional clarity and fidelity.. Processor. Supported processor sockets. LGA 1700. Compatible processor series. Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold. Processor socket. LGA 1700. Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 128 GB. Supported memory clock speed (max). 5333 MHz. Supported memory clock speeds. 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5066,5133,5333 MHz. ECC сompatibility. Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR4-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. RGB LED pin header. Yes. Number of COM connectors. 1. TPM connector. Yes. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Peripheral (Molex) power connectors (4-pin). 1. Chassis intrusion connector. Yes. Number of chassis fan connectors. 3. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. USB 2.0 connectors. 2. Rear panel I/O ports. Microphone in. Yes. Headphone outputs. 1. Line-in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 2. Network. Wi-Fi. Yes. Ethernet interface type. Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Power source type. ATX. Audio output channels. 7.1 channels. Motherboard chipset. Intel Z790. Motherboard chipset family. Intel. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 3. PCI Express x16 (Gen 5.x) slots. 1. PCI Express x16 (Gen 4.x) slots. 1. PCI Express x1 (Gen 4.x) slots. 2. BIOS. Clear CMOS button. Yes. BIOS memory size. 192 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 970 g. Package height. 266.5 mm. Package depth. 67.5 mm. Package width. 275 mm. Weight & dimensions. Depth. 244 mm. Width. 244 mm. Packaging content. Drivers included. Yes. Cables included. SATA. Other features. Number of M.2 (E) slots. 1. manual pdf
