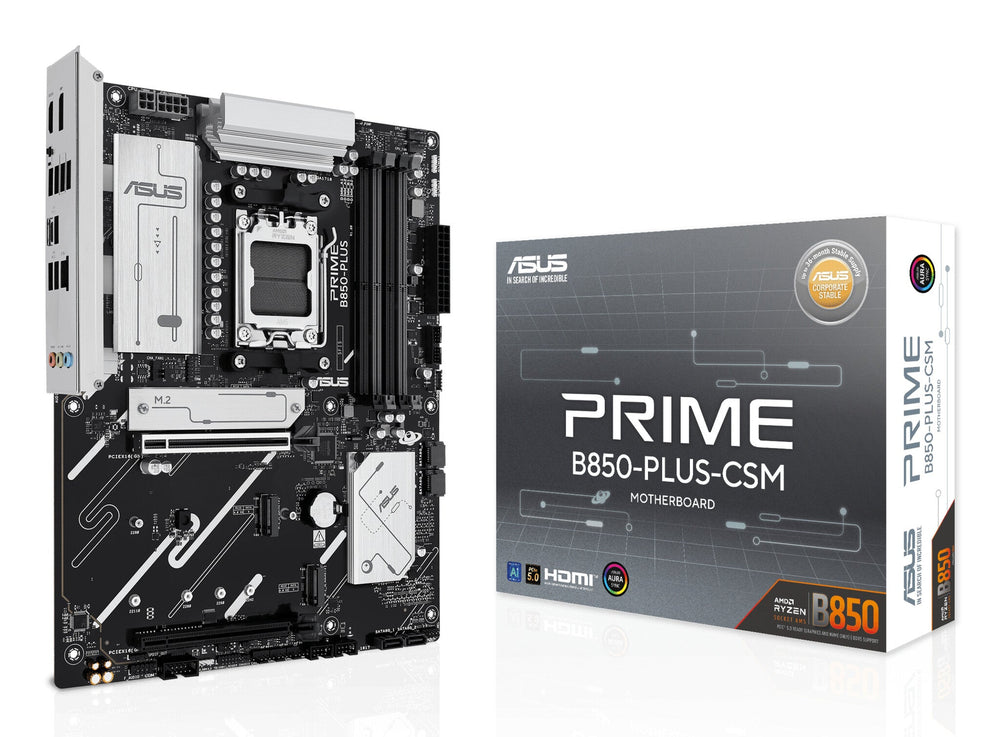

ASUS PRIME B850-PLUS-CSM AMD B850 Socket AM5 ATX90MB1LC0-M0EAYC

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. PC ATX AMD B850 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7. BIOS type: UEFI AMI 256 Mbit. 2.5 Gigabit Ethernet. Prime B850-PLUS-CSM. ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.. Processor. Compatible processor series. AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Processor socket. Socket AM5. Processor manufacturer. AMD. Memory. Unbuffered memory. Yes. Maximum internal memory. 256 GB. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 7. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. Number of RGB LED pin headers. 3. RGB LED pin header. Yes. Number of water pump connectors. 1. Number of COM connectors. 1. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 4. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. USB 2.0 connectors. 2. Rear panel I/O ports. USB connector type. USB Type-A, USB Type-C. Microphone in. Yes. Line-in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 3. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. USB 2.0 ports quantity. 2. Network. Wi-Fi. No. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Cooling type. Passive. Product colour. Multicolour. Audio output channels. 7.1 channels. Motherboard chipset. AMD B850. Motherboard chipset family. AMD. Motherboard form factor. ATX. Component for. PC. Expansion slots. 1st M.2 highest PCI Express generation. 5.0. 1st M.2 largest key size. 22110. Number of M.2 (M) slots. 3. PCI Express x16 (Gen 4.x) slots. 1. BIOS. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 1.24 kg. Package height. 68 mm. Package depth. 273 mm. Package width. 353 mm. Weight & dimensions. Height. 48 mm. Depth. 244 mm. Width. 305 mm. Other features. Weight. 1.03 kg. manual pdf. manual pdf
