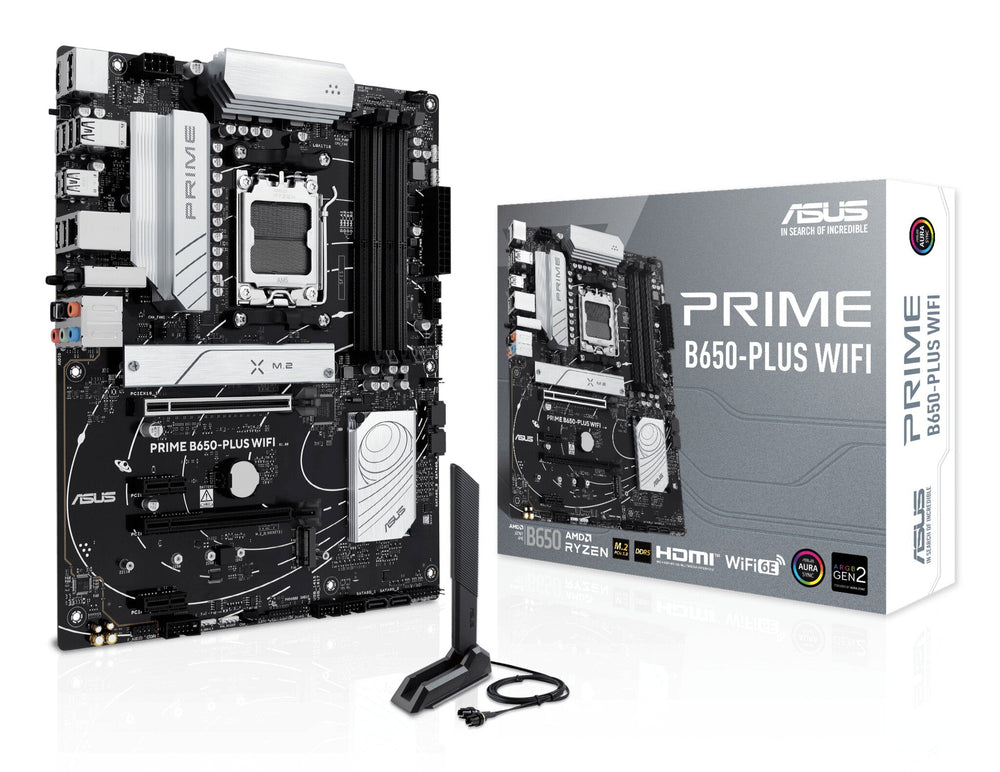

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX - 90MB1KP0-M0EAY0

AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors. Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support. ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware. B650-PLUS WIFI. ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.. Processor. Supported processor sockets. Socket AM5. Compatible processor series. AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Processor socket. Socket AM5. Processor manufacturer. AMD. Memory. Unbuffered memory. Yes. Maximum internal memory. 192 GB. Supported memory clock speed (max). 7600 MHz. Supported memory clock speeds. 7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 10. RAID support. Yes. Number of storage drives supported. 6. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. Number of RGB LED pin headers. 1. RGB LED pin header. Yes. Number of COM connectors. 1. TPM connector. Yes. Thunderbolt headers. 1. 12V power connector. Yes. EPS power connector (8-pin). Yes. Number of chassis fan connectors. 3. Number of CPU fan connectors. 2. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel connector. Yes. Front panel audio connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. USB 2.0 connectors. 2. Rear panel I/O ports. WiFi-AP antenna jack. 1. S/PDIF out port. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity. 1. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 3. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. USB 2.0 ports quantity. 2. Network. Bluetooth version. 5.3. Bluetooth. Yes. Wi-Fi standards. Wi-Fi 6E (802.11ax). Top Wi-Fi standard. Wi-Fi 6E (802.11ax). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Audio output channels. 7.1 channels. Motherboard chipset. AMD B650. Motherboard chipset family. AMD. Motherboard form factor. ATX. Component for. PC. Expansion slots. 2nd M.2 highest PCI Express generation. 4.0. 2nd M.2 largest key size. 22110. 1st M.2 highest PCI Express generation. 5.0. 1st M.2 largest key size. 22110. Number of M.2 (M) slots. 2. PCI Express x16 (Gen 4.x) slots. 2. PCI Express x1 (Gen 4.x) slots. 2. BIOS. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Packaging data. Package weight. 1.35 kg. Package height. 68 mm. Package depth. 373 mm. Package width. 338 mm. Weight & dimensions. Depth. 244 mm. Width. 305 mm. Packaging content. Antenna included. Yes. Screws included. Yes. Cables included. SATA. manual pdf
