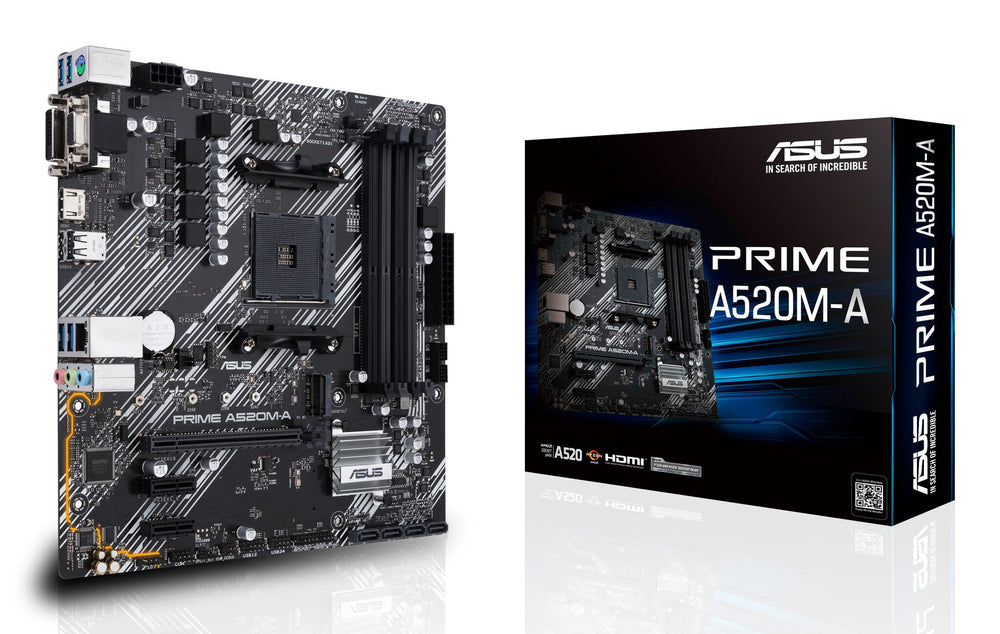

ASUS PRIME A520M-A II/CSM AMD A520 Socket AM4 micro ATX - 90MB17H0-M0EAYC

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors. Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+. Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A. Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware. ASUS Control Center Express (ACCE) for easier IT endpoint management. AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support. Prime. ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.. ASUS Corporate Stable Model. ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.. Learn more about ASUS Corporate Stable Model >. * Lifecycle support for consumer chipsets (eg. Q370, H370, B360,H270,B250) is set at 15 months. Program offerings may vary by region. Please consult your local sales representative for more information.. ASUS Control Center Express. ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.. Optimize IT endpoint management. Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely. Automate IT maintenance. Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. Securely manage all of endpoints. Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices. Tune It Your Way. Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.. UEFI BIOS. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.. Advanced Tuning for Serious Tweakers. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.. Search Function. Quickly and easily find the option or setting you need.. ASUS User Profile. Port configuration settings between different BIOS versions or share them with friends.. Quick and Simple Setup. EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.. Intuitive Graphical Fan Control. Fine-tune individual fan settings simply by dragging a curve with the mouse.. EZ XMP. Improve DRAM performance with one click.. Aura On/Off Mode (Stealth). Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.. Cool to the Core. PRIME A520M-A II is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.. VRM Heatsink and Thermal Pad. A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance.. Cooler by Design. Prime A520M-A II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.. Multiple Temperature Sources. Each header can monitor and react to dedicated thermal sensors.. Smart Protection. A dedicated integrated circuit protects the fan headers, including short circuit and over temperature protections.. 4-Pin PWM/DC Fan. Each onboard CHA FAN header supports PWM and DC mode.. Build on a Solid Foundation. Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.. PCIe 3.0 M.2. (up to 32 Gbps). Achieve speed with onboard M.2. M.2 slot supports up to 2280 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.. USB 3.2 Gen 1. Type-A. Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.. Little Things Make a Big Difference. Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.. Outstanding Audio. Combined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.. Audio Shielding. Separates analog/digital signal domains, significantly reducing multi-lateral interference.. Separate Layer for Left and Right Tracks. Ensures minimal crosstalk between audio paths.. Premium Japanese Capacitors. Premium parts provide an immersive sound signature, with exceptional fidelity.. Aura Sync. Outshine the Competition. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.. Addressable Gen 2 RGB Header. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.. Armoury Crate. Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.. SafeSlot Core. Fortified PCIe slot prevents damage. SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.. ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.. Overvoltage Protection. World-class circuit-protecting power design. An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.. DRAM Overcurrent Protection. Short-circuit damage prevention. Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.. Stainless-Steel Back I/O. 3X corrosion-resistance for greater durability. Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.. LANGuard. Pumped-up throughput 2.5X higher surge tolerance. ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.. Processor. Compatible processor series. AMD Ryzen™ 3, AMD Ryzen™ 5. Processor socket. Socket AM4. Processor manufacturer. AMD. Memory. Unbuffered memory. Yes. Maximum internal memory. 128 GB. Supported memory clock speeds. 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4100,4133,4400,4466,4600,4800 MHz. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR4-SDRAM. Storage controllers. RAID levels. 0, 1, 10. RAID support. Yes. Number of storage drives supported. 5. Number of HDDs supported. 4. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. RGB LED pin header. Yes. Number of COM connectors. 1. TPM connector. Yes. 12V power connector. Yes. EPS power connector (8-pin). Yes. Number of chassis fan connectors. 2. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel audio connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 2. Rear panel I/O ports. USB connector type. USB Type-A. Microphone in. Yes. DisplayPorts quantity. 1. HDMI ports quantity. 1. VGA (D-Sub) ports quantity. 1. PS/2 ports quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 2. Network. Wi-Fi. No. Ethernet interface type. Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64. Audio output channels. 7.1 channels. Audio chip. Realtek ALC887 / Realtek ALC897. Motherboard chipset. AMD A520. Motherboard chipset family. AMD. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 1. PCI Express x16 (Gen 3.x) slots. 1. PCI Express x1 (Gen 3.x) slots. 2. BIOS. BIOS memory size. 128 Mbit. BIOS type. UEFI AMI. Weight & dimensions. Depth. 244 mm. Width. 244 mm. PRIME A520M-A II Quick Start Guide. manual pdf
