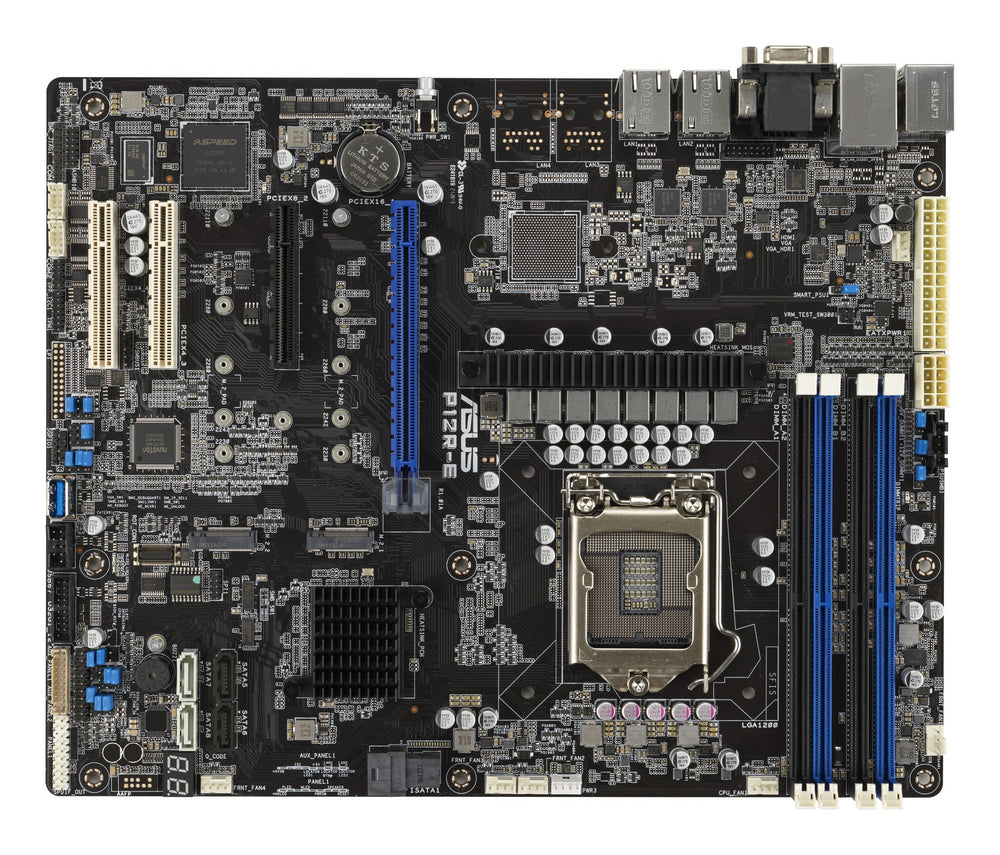

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX - 90SB0A90-M0UAY0

Ideal for remote office/branch office (ROBO) use and everyday business environments. Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP. Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots. Dual Intel I210AT Gigabit Ethernet with teaming support. Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link. HDMI 1.4 support for high-resolution display maintenance and monitoring. Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management. Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency. PCIe 4.0 Ready. PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.. Intel Xeon E-2300 processors. Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.. Processor. Compatible processor series. Intel® Pentium®, Intel Xeon E. Processor socket. LGA 1200 (Socket H5). Processor manufacturer. Intel. Memory. Supported memory module capacities. 8GB, 16GB, 32GB. Maximum internal memory. 128 GB. Supported memory clock speed (max). 3200 MHz. Supported memory clock speeds. 2666,2933,3200 MHz. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR4-SDRAM. Storage controllers. RAID support. Yes. Number of storage drives supported. 10. Number of HDDs supported. 8. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. On-board graphics card model. Aspeed AST2600. On-board graphics card memory. 64 MB. Graphics card family. ASPEED. On-board graphics card. Yes. Internal I/O. Number of COM connectors. 1. TPM connector. Yes. Chassis intrusion connector. Yes. Power fan connector. Yes. ATX Power connector (24-pin). Yes. Number of SATA III connectors. 8. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 1. Rear panel I/O ports. HDMI ports quantity. 1. VGA (D-Sub) ports quantity. 1. PS/2 ports quantity. 1. Ethernet LAN (RJ-45) ports. 2. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. Network. Wi-Fi. No. Ethernet interface type. Gigabit Ethernet. Ethernet LAN. Yes. Features. PC health monitoring. CPU, Fan. Motherboard chipset. Intel C256. Motherboard chipset family. Intel. Motherboard form factor. ATX. Component for. Server. Expansion slots. Number of M.2 (M) slots. 2. PCI Express x16 (Gen 4.x) slots. 1. PCI Express x8 (Gen 4.x) slots. 1. PCI Express x8 (Gen 3.x) slots. 2. Operational conditions. Storage relative humidity (H-H). 20 - 90%. Operating temperature (T-T). 10 - 50 °C. Storage temperature (T-T). -40 - 70 °C. Packaging data. Package weight. 1.5 kg. Package height. 78 mm. Package depth. 281 mm. Package width. 341 mm. Logistics data. Harmonized System (HS) code. 84733020. Weight & dimensions. Height. 68 mm. Depth. 244 mm. Width. 305 mm. Other features. Weight. 800 g. leaflet. manual pdf
