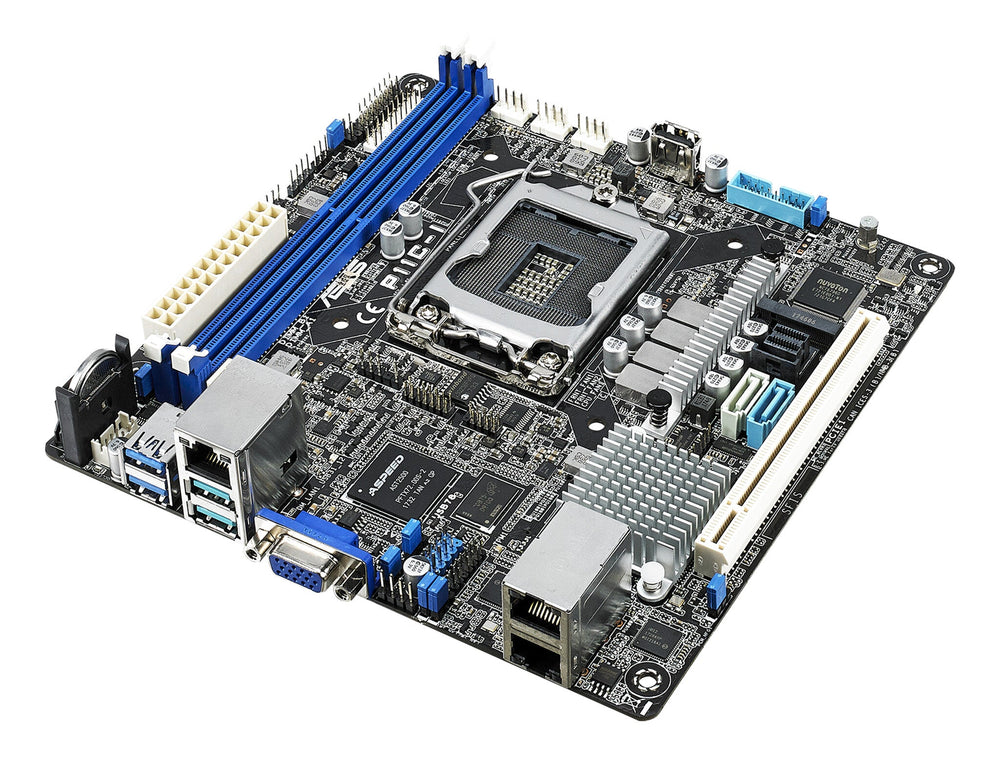

ASUS P11C-I LGA 1151 (Socket H4) mini ITX90SB06T0-M0UAY0

Intel Mehlow Platform Mini ITX Motherboard for Intel Xeon E-Series Processors LGA1151 socket featuring M.2, USB 3.1, support for ECC/non-ECC DDR4 UDIMM and Intel Optane Memory. Dual Intel I210AT Gigabit Ethernet with teaming support and additional dedicated management port. Flexible NVMe Storage Options via high-speed mini-SAS HD connections and port-to-port OCuLink. TPM-M 2.0 Ready with a 14.1 TPM header to securely store keys, digital certificates, passwords and data. Complete IT Infrastructure Management with in-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching. Mini-ITX compact server board with multiple expandability options. P11C-I is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering dual server-class Intel Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7” x 6.7” Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.. Accelerated data-transfer speeds of up to 32Gbps with M.2. With PCIe 3.0 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. P11C-I also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.. High-speed mini-SAS HD connections. P11C-I comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I, making it a great upgrade option.. Dual Intel I210AT Gigabit Ethernet. P11C-I features dual server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.. TPM-M 2.0 ready. P11C-I supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.. Comprehensive IT infrastructure management. P11C-I features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.. The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.. Enhanced serviceability. With its power button located on the front I/O panel, P11C-I is designed to provide easier maintenance and deployment for diverse applications.. Quick initialization guidance. P11C-I provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.. ASUS ProCool connector. ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.. Processor. Maximum number of SMP processors. 1. Compatible processor series. Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®. Processor socket. LGA 1151 (Socket H4). Processor manufacturer. Intel. Memory. Supported memory module capacities. 4GB, 8GB, 16GB. Maximum internal memory. 32 GB. Supported memory clock speeds. 2400,2666 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 2. Supported memory types. DDR4-SDRAM. Storage controllers. SAS controller. Yes. Number of HDDs supported. 6. Supported storage drive interfaces. M.2, SATA II. Supported storage drive types. HDD & SSD. Graphics. Number of displays supported. 1. Graphics card. AST2500. Graphics card family. ASPEED. Maximum graphics card memory. 32 MB. Internal I/O. TPM connector. Yes. Peripheral (Molex) power connectors (4-pin). 3. Number of chassis fan connectors. 3. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel connector. Yes. Number of SATA III connectors. 6. USB 2.0 connectors. 1. Rear panel I/O ports. USB connector type. USB Type-A. VGA (D-Sub) ports quantity. 1. Ethernet LAN (RJ-45) ports. 3. USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. Network. LAN controller. Intel® I210-AT. Ethernet interface type. Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Yes. Linux operating systems supported. Yes. Number of mounting holes. 4. Cooling type. Active. Power source type. ATX. PC health monitoring. CPU, Fan, Temperature. Motherboard chipset family. Intel. Motherboard form factor. mini ITX. Component for. PC. Expansion slots. Number of M.2 (M) slots. 1. PCI Express x16 (Gen 3.x) slots. 1. Operational conditions. Storage relative humidity (H-H). 20 - 90%. Operating temperature (T-T). 10 - 35 °C. Storage temperature (T-T). -40 - 70 °C. Packaging data. Package weight. 520 g. Logistics data. Harmonized System (HS) code. 84733020. Weight & dimensions. Depth. 170 mm. Width. 170 mm. Packaging content. Drivers included. Yes. Cables included. SATA. Other features. Utilities included. Yes. Maximum UDIMM memory. 32 GB. Supported UDIMM module capacity. 4GB, 8GB, 16GB. Supported UDIMM clock speeds. 2400,2666 MHz. HDD size. 2.5/3.5". manual pdf. leaflet
