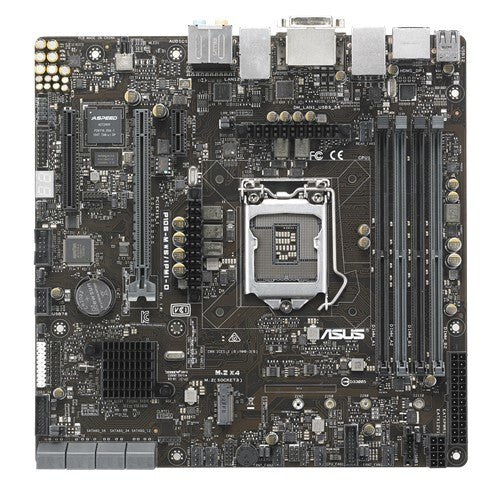

ASUS P10S-M WS/IPMI-O Intel® C236 LGA 1151 (Socket H4) micro ATX90SB05M0-M0EAY0

Design for rack optimized solution with out-of band remote management. Accelerate to 32Gbit/s data-transfer speeds with M.2 native NVMe supported. Optimized integrated graphic power supported latest API. Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D. Remote Management with optional ASMB8. Design for rack optimized solution. P10S-M WS/IPMI-O is the workstation board that’s perfect for media server, cloud gaming, video streaming and so much more. Its thoughtful layout maximizes accessibility to adjust inside temperature, which is great for rack-mounted configuration – so it’s ready to meet enterprise or academia need.. Accelerate to 32Gbit/s data-transfer speeds with M.2, up to 22110. With x4 PCI Express 3.0 bandwidth, one M.2 supports 32Gbit/s data-transfer speeds in Native NVMe – that’s up to 5.3X faster than traditional SSDs. The powerful signal also supports the very latest 2.5-inch NVMe SSDs technology via ASUS M.2-NVME1 (2242) for quick, simple setup.. Furthermore, the M.2 is designed up to 110mm, which is provided most of choices for customers installing various SSD.. Optimized integrated graphic power supported latest API. The P10S-M WS/IPMI-O features Intel® Socket 1151 with the C236 chipset specially-designed for workstations. It supported latest API like DirectX 3D 2015, OGL 4.4, OpenGL ES 3.0 and OpenCL2.1. ISV application testing and certification with integrated graphics cores on E3-1200 v5/v6 processors are perfect for entry-level workstations and software such as Autodesk AutoCAD, Autodesk Maya and Adobe After Effects CC, etc. The P10S-M WS/IPMI-O is your best choice for a DIY workstation build that rivals top-tier pre-built workstations.. Drive three independent displays simultaneously. P10S-M WS/IPMI-O in equipped for total display flexibility, with HDMI, DisplayPort and DVI-D connectivity all built in to the board. With a compatible latest-generation Intel® process, you’ll be able to connect and drive three independent displays simultaneously – great for multitasking, and even better for productivity.. Platinum-Grade Power Efficiency. P10S-M WS/IPMI-O is engineered with hand-chosen components to reach platinum-grade power efficiency – that reduces temperatures and switching loss from CPU. The energy-efficient, technologies include:. 1.Ultra-durable 12K solid capacitors. 2.Beat Thermal Choke III. 3.ASUS Digi+ Voltage-Regulator Module (VRM). Built-in Dual Intel I210 Server-Class Gigabit LAN. For more reliable networking, the P10S-M WS/IPMI-O features the latest server class built-in dual Intel® Gigabit LAN. This leads to lower CPU utilization and temperature, achieving outstanding performance as well as better support for diverse operating systems.. Remote Management with optional ASMB8-iKVM. IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management, ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if it is down or offline. In addition, ASWM Enterprise software provides one-to-multiple centralized management via colorful and informative graphical interface.. CPU, Chipset and Graphics features. Socket LGA1151 for Intel® 6th/7th Generation Core i7/i5/i3 and Xeon E3-1200 v5/v6 Processors. The latest Intel® 6th/7th generation Core™ i7/i5/i3, Xeon E3-1200 v5/v6, and Pentium/Celeron series processors in the LGA1151 package are supported, with memory and PCI Express controllers integrated to enable 2-channel (4 DIMM) DDR4 memory and x16 PCI Express 3.0 slots. They provides great graphics performance and become as most powerful and energy efficient CPUs in the world.. Intel® C236 Express Chipset. The Intel® C236 Express is the latest single-chipset design, supporting the new socket LGA1151 Intel® Core™ i7/i5/i3 6th/7th generation processors and Intel® Xeon® E3-1200 v5/v6 server processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the C236 comes with eight SATA 6Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. It also supports Intel's iGPU integrated graphics.. Processor. Supported processor sockets. LGA 1151 (Socket H4). Compatible processor series. Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®. Processor socket. LGA 1151 (Socket H4). Processor manufacturer. Intel. Memory. Unbuffered memory. Yes. Maximum internal memory. 64 GB. Supported memory clock speeds. 2133,2400 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR4-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. Number of HDDs supported. 8. Supported storage drive interfaces. M.2, SATA III. Supported storage drive types. HDD & SSD. Graphics. Parallel processing technology support. Not supported. Internal I/O. Number of COM connectors. 1. TPM connector. Yes. CPU fan connector. Yes. Power fan connector. Yes. Number of EATX power connectors. 1. ATX Power connector (24-pin). Yes. CD/AUX audio in. Yes. Front panel connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 8. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 2. USB 2.0 connectors. 1. Rear panel I/O ports. S/PDIF out port. Yes. DisplayPorts quantity. 1. DVI-D ports quantity. 1. HDMI ports quantity. 1. Ethernet LAN (RJ-45) ports. 2. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 2. USB 2.0 ports quantity. 2. Network. Wi-Fi. No. Ethernet LAN. Yes. Features. Audio output channels. 8.0 channels. Audio chip. Realtek ALC1150. Motherboard chipset. Intel® C236. Motherboard chipset family. Intel. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. PCI Express x16 (Gen 3.x) slots. 1. PCI Express x1 (Gen 3.x) slots. 1. BIOS. ACPI version. 5.0a. BIOS memory size. 128 Mbit. BIOS type. EFI AMI. Logistics data. Harmonized System (HS) code. 84733020. Weight & dimensions. Depth. 244 mm. Width. 244 mm. Other features. VGA connectors. 1. PCI Express x4 (Gen 3.x) slots. 1. manual pdf
