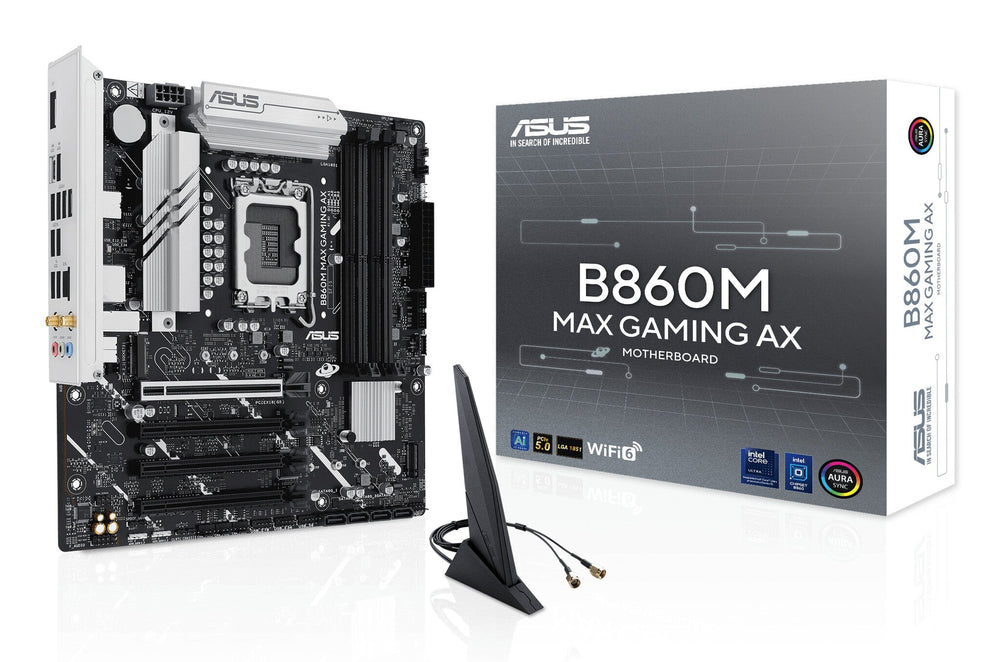

ASUS B860M MAX GAMING AX Intel B860 LGA 1851 (Socket V1) micro ATX90MB1JZ0-M0EAY0

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2). PC micro ATX Intel B860 7.1 channels. DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB. HDD & SSD PCI Express 4.0, PCI Express 5.0 RAID support Number of storage drives supported: 7. BIOS type: UEFI AMI 256 Mbit. 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3. ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the B860M MAX GAMING AX motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.. Performance. AI Solutions. ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.. AI Advisor. ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.. Performance. Robust power design. Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The B860M MAX GAMING AX is designed to meet the needs of high-core-count CPUs. It features 6(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.. Enhanced Memory & Storage Performance. AEMP III for Ultimate DDR5 Performance. ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.. DIMM Fit / DIMM Fit Pro. DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.. Three M.2 slots (up to 128Gbps). The B860M MAX GAMING AX offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.. Cooling. Cooler by design. The B860M MAX GAMING AX motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.. Cooling. Smart cooling precision. ASUS Fan Xpert 2+. ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.. Cooler compatibility. ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.. Flexibility. Empowering connections. The B860M MAX GAMING AX motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.. WiFi 6. The WiFi 6 module is compatible with the 802.11ax. Perhaps more importantly for users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic.. USB 20Gbps port. A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.. PCIe 5.0 slot. The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.. Customization. Personalization. The B860M MAX GAMING AX enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.. UEFI BIOS. The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.. ASUS GlideX. Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.. ASUS DriverHub. Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.. Armoury Crate. Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.. Aura Sync. Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.. Addressable Gen2 RGB headers. Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.. Customization. DIY friendly. The B860M MAX GAMING AX motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.. Pre-mounted I/O shield. Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.. SafeSlot. PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.. Q-LED Core. The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.. Processor. Supported processor sockets. Intel LGA1851. Compatible processor series. Intel Core Ultra (Series 2). Processor socket. LGA 1851 (Socket V1). Processor manufacturer. Intel. Memory. Maximum internal memory per slot. 64 GB. Unbuffered memory. Yes. Maximum internal memory. 256 GB. Supported memory clock speed (max). 8666 MHz. ECC сompatibility. ECC & Non-ECC. Memory channels. Dual-channel. Memory slots type. DIMM. Number of memory slots. 4. Supported memory types. DDR5-SDRAM. Storage controllers. RAID levels. 0, 1, 5, 10. RAID support. Yes. Number of storage drives supported. 7. Number of HDDs supported. 4. Supported storage drive interfaces. PCI Express 4.0, PCI Express 5.0. Supported storage drive types. HDD & SSD. Graphics. Maximum resolution. 3840 x 2160 pixels. Parallel processing technology support. Not supported. Internal I/O. Number of RGB LED pin headers. 3. RGB LED pin header. Yes. Number of water pump connectors. 1. TPM connector. Yes. 12V power connector. Yes. Number of EPS power connectors (8-pin). 1. EPS power connector (8-pin). Yes. Chassis intrusion connector. Yes. Number of chassis fan connectors. 4. Number of CPU fan connectors. 1. CPU fan connector. Yes. ATX Power connector (24-pin). Yes. Front panel connector. Yes. Front panel audio connector. Yes. S/PDIF out connector. Yes. Number of SATA III connectors. 4. USB 3.2 Gen 2 (3.1 Gen 2) connectors. 1. USB 3.2 Gen 1 (3.1 Gen 1) connectors. 1. USB 2.0 connectors. 3. Rear panel I/O ports. WiFi-AP antenna jack. 2. Microphone in. Yes. Line-in. Yes. DisplayPort version. 1.4. DisplayPorts quantity. 1. Ethernet LAN (RJ-45) ports. 1. USB 3.2 Gen 2x2 Type-C ports quantity. 1. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity. 4. USB 2.0 ports quantity. 4. Network. Bluetooth version. 5.3. Bluetooth. Yes. Wi-Fi standards. Wi-Fi 6 (802.11ax). Top Wi-Fi standard. Wi-Fi 6 (802.11ax). Wi-Fi. Yes. Ethernet interface type. 2.5 Gigabit Ethernet. Ethernet LAN. Yes. Features. Windows operating systems supported. Windows 10 x64, Windows 11. Cooling type. Passive. Power source type. ATX. Product colour. Grey. Audio output channels. 7.1 channels. Motherboard chipset. Intel B860. Motherboard chipset family. Intel. Motherboard form factor. micro ATX. Component for. PC. Expansion slots. 3rd M.2 highest PCI Express generation. 4.0. 3rd M.2 largest key size. 2280. 2nd M.2 highest PCI Express generation. 4.0. 2nd M.2 largest key size. 2280. 1st M.2 highest PCI Express generation. 5.0. 1st M.2 largest key size. 2280. Number of M.2 (M) slots. 3. PCI Express x16 (Gen 5.x) slots. 1. PCI Express x16 (Gen 4.x) slots. 3. BIOS. BIOS memory size. 256 Mbit. BIOS type. UEFI AMI. Weight & dimensions. Depth. 244 mm. Width. 244 mm. Packaging content. Antenna included. Yes. Screws included. Yes. Cables included. SATA. Other features. Quick installation guide. Yes. manual pdf
